HeadZap
Components

AuSIM's HeadZap system is provided either with, or as an upgrade to, AuSIM's GoldSeries audio vectorization servers. All HeadZap software mounts on the GoldSeries server, and is normally provided pre-installed. In addition to the software and manuals, HeadZap includes the following components:

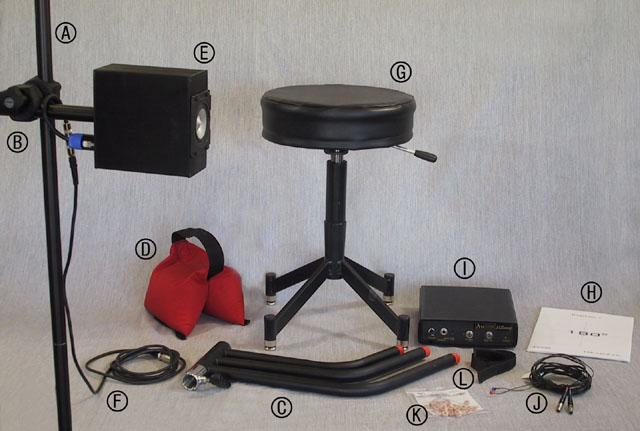

Components included with the basic HeadZap System

	A		Speaker stand components: Foba Combitubes; 2-80cm, 2-40cm, 1-20cm
	B		Speaker stand components: tube clamp for horizontal arm
	C		Speaker stand components: three-leg base
	D		Speaker stand components: sand bag to stabIlize base
	E		HeadZap speaker: aluminum casing; specially equalized for HeadZap
	F		Speaker cable with 1/4” balanced connector

	G		Subject Stool: adjustable, rotating stool; with stool cover
	H		Wall markers: 8½” x 11”; 30° increments
	I		HeadZap power amplifier and pre-amplifier with power supply
	J		HeadZap Blocked-Meatus microphone pair: specially equalized; with cables
	K		Etymotic Trial E-A-R Ring Kit (microphone seals)
	L		Velcro headband for securing microphone cables
