AuSIM Audio Simulation Engine |
|
 |
single AuSIM3Dtm processor |
|
 |
supports 64 sound sources |
|
 |
supports one listener; expandable to 4 |
|
 |
supports custom minimum-phase HRTF filters up to 512-taps |
|
 |
audio buffering memory: 1200 seconds, expandable to 72 minutes |
|
 |
mobile notebook computer with integral screen and keyboard |
 |
Analog/Digital I/O |
|
 |
eight (8) analog input channels, 24-bit resolution |
|
 |
eight (8) analog output channels, 24-bit resolution |
|
 |
single-channel balanced headphone amplifier |
|
 |
one RS-232 client interface |
 |

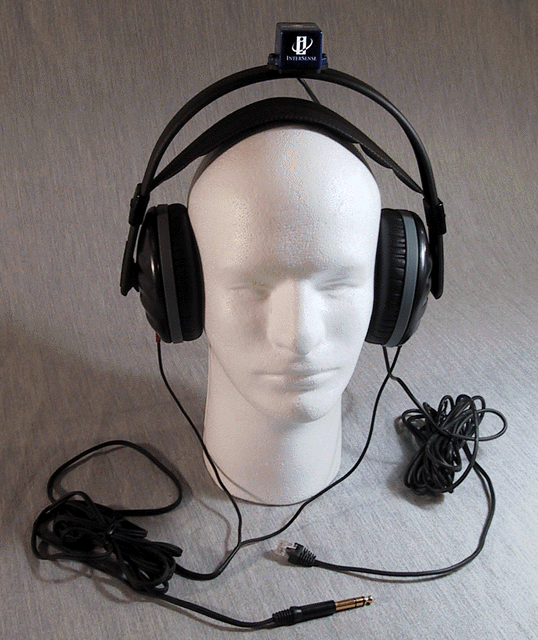

High-fidelity, specifically equalized, open-circumaural
headphones |
 |
InterSense InertiaCube2 inertial-based
head-orientation tracker |
 |
Pre-installed, royalty-free library of over 600 wavefile
samples |
 |
Four sample listener filtersets (HRTF filters)
|
 |
System, server, renderer, and client software licenses
|
 |
Manuals, internal cables, and RS-232 null-modem cable to
client computer |
 |
Integrated console with high-resolution flat-panel display
|
 |
Performance |
|
 |
localization: 64 concurrent sources @ 44.1 KHz sample rate,
64 concurrent sources @ 48 KHz sample rate |
|
 |
pitch: 20-500% shift control for all sources |
|
 |
dynamic update rate: better than 120 Hz |
|
 |
analog input: 128X oversampled, 24 bit A/D converters |
|
 |
analog output: 8X oversampled, interpolating filters |
|
 |
stereo crosstalk: 100dBV @ 100Hz, 80dBV @ 1kHz, 60dBV @ 10kHz |
