AuSIM Audio Simulation Engine |
|
 |
single AuSIM3Dtm processor |
|
|
supports 16 sound sources |
|
|
supports one listener; expandable to 4 |
|
|
supports custom minimum-phase HRTF filters up to 128-taps |
|
|
audio buffering memory: 400 seconds, expandable to 20 minutes |
|
Analog/Digital I/O |
|
|
eight (8) analog input channels, 24-bit resolution |
|
|
eight (8) analog output channels, 24-bit resolution |
|
|
single-channel balanced headphone amplifier |
|
|
one RS-232 client interface |
|

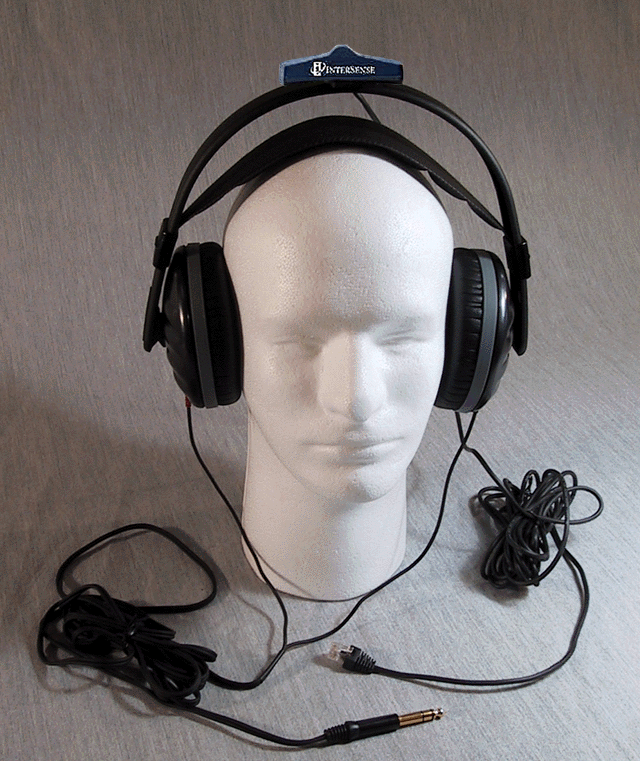

High-fidelity, specifically equalized, open-circumaural headphones |
|
InterSense InterTrax2 inertial-based head-orientation
tracker |
|
Pre-installed, royalty-free library of over 600 wavefile
samples |
|
Four sample listener filtersets (HRTF filters)
|
|
System, server, renderer, and client software licenses
|
|
Manuals, internal cables, and RS-232 null-modem cable to
client computer |
|
Server console: keyboard, pointing device, and monitor
|
|
Performance |
|
|
localization: 8 concurrent sources @ 44.1 KHz sample rate,
8 concurrent sources @ 48 KHz sample rate |
|
|
pitch: 20-500% shift control for all sources |
|
|
dynamic update rate: better than 120 Hz |
|
|
analog input: 128X oversampled, 24 bit A/D converters |
|
|
analog output: 8X oversampled, interpolating filters |
|
|
stereo crosstalk: 100dBV @ 100Hz, 80dBV @ 1kHz, 60dBV @ 10kHz |
